Name: Mono Series EMB4 Rear Wheel 4-Pistons Brake Kit
Brand: TTSPORT
SKU: 42337417298006
Price: 2100.0 USD
Availability: InStock

Specifications
Before You Buy
FAQs

Specifications

Caliper
Series	Mono Series
Model	EMB4
Mounting Position	Rear
Number of Pistons	4
Piston Type	Two‑Piece Vented Pistons without Dust Boots
Piston Diameter	30 mm × 4
Dimensions	L 268 mm × W 164 mm × H 68 mm
Total Piston Area	28.28 cm²
Manufacturing Process	Monoblock Forged
Net Weight	2.55 Kg (Single Caliper without Pad)
Surface Finish	Chrome Plated
Recommended Wheel Size	18″ or Larger
Recommended Rotor Size	⌀345‑380 mm / Thickness 28 mm
Brake Rotor
Material	Heat‑Treated High Carbon Steel	Carbon‑Ceramic Composite
Mounting Position	Rear	Rear
Dimensions	⌀345 / 355 / 380 mm × 28 mm	⌀380 mm × 28 mm
Construction	2‑Piece Rotor	2‑Piece Rotor
Vented / Solid	Vented	Vented
Floating / Fixed	Floating	Floating
Directional (Left / Right Specific)	Yes	Yes

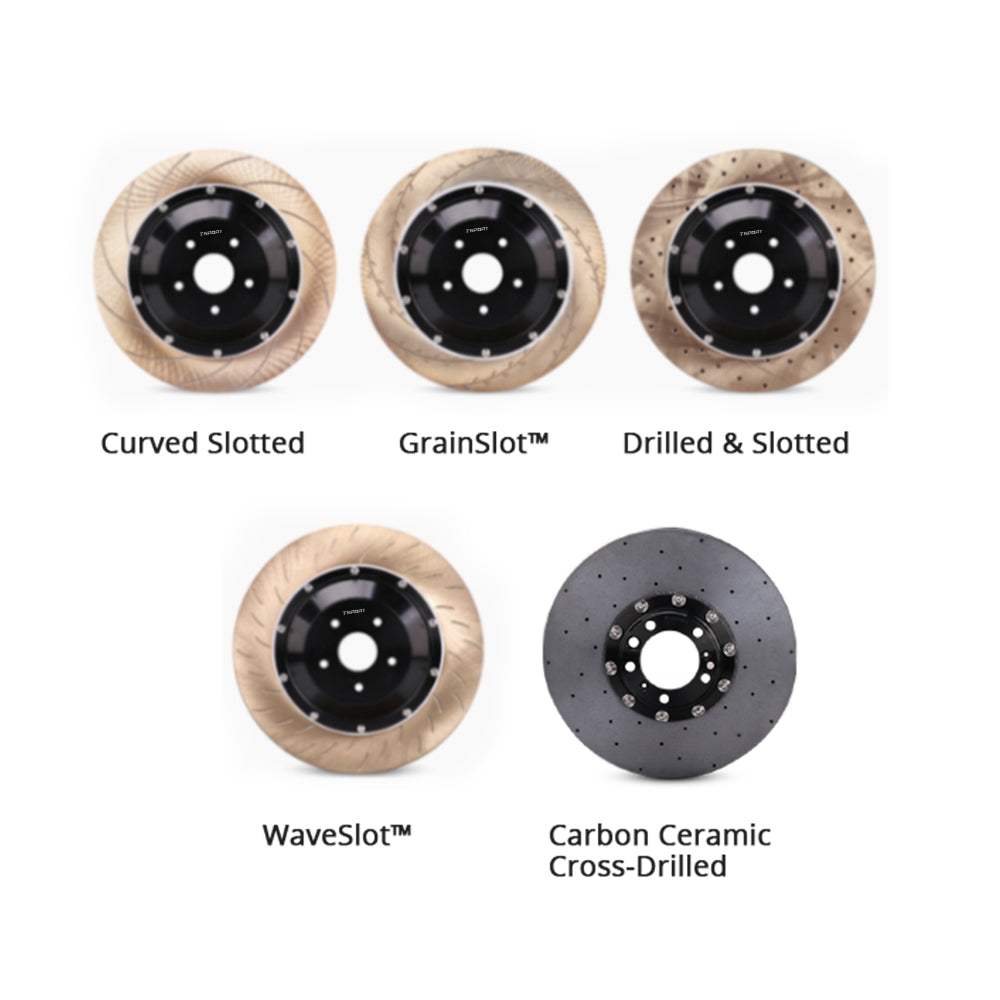

Design	Curved Slotted / GrainSlot / WaveSlot / Drilled & Slotted	Cross Drilled
Brake Pad
Compatible Rotor Materials	Steel Rotors	Carbon‑Ceramic Rotors
Operating Temperature Range	0‑550 °C	0‑700 °C
Coefficient of Friction	0.4 μ‑0.46 μ	0.46 μ ± 0.15
Brake Hose
Construction	3‑Layer Reinforced
Material	Inner: PTFE (Teflon); Middle: SUS304 Braided Stainless Steel; Outer: PVC Sheath
Rotor Hat
Manufacturing Process	CNC‑Machined
Material	Aerospace‑Grade Aluminum Alloy
Caliper Bracket
Manufacturing Process	CNC‑Machined
Material	Carbon Steel

Before You Buy

Purchase Process

1. Submit Vehicle Info: Tell us your vehicle make, model, year, VIN, wheel specs, and driving intent via chat or form.
2. Product Recommendation: Our technical support selects the ideal brake kit suited to your specs.
3. Place Your Order: Confirm your choice and complete the purchase on-site or via a custom link from our team.
4. Production Arranged: We schedule custom kit production after payment is confirmed.
5. Order Shipped: We inspect, package securely, and ship with tracking information.

Brake Kit Purchase Notice

Custom‑made products cannot be returned unless there is a genuine quality defect.
Spacer requirements vary depending on wheel design; we assist with fitment, but spacer‑related issues do not qualify for returns.

1. Disclaimer

Please provide vehicle make, model year, VIN, and wheel size before ordering TTSPORT products.
Confirm wheel measurements and submit photos as requested — TTSPORT is not liable for issues arising from incorrect specs.
All products are inspected before shipping. Inspect upon delivery and report quality issues within 24 hours.

2. Initial Break‑In Procedure

In a safe area, brake from 60 km/h to 10 km/h with moderate pressure—repeat 10 times.
Drive 500–1,000 km with light to moderate usage before full braking performance. Avoid aggressive stops.
Our high‑carbon steel discs have grooved, color‑treated surfaces to help quick bedding and resist corrosion.

3. Product Warranty

Calipers: 1‑year warranty on defects. Lifetime maintenance available (parts charged).
Discs & Hoses: 90‑day warranty for defects. Expected lifespan: 40,000–60,000 km.
Brake Pads: 90‑day coverage. Typical lifespan: 20,000–40,000 km.
Custom Hats/Brackets: Fit guaranteed; no warranty post-installation.

4. Usage & Maintenance

Do not wash immediately after hard braking to prevent rotor warpage.
Allow extra stopping distance when driving in wet conditions.
If you experience unusual noise or vibration, consult your installer immediately.

Recommended service intervals:

Replace rotors when wear exceeds 3 mm.
Front pads: every 30,000 km.
Rear pads: every 50,000–60,000 km.
Brake fluid: every 40,000 km or every 2 years.

FAQs

Q1: How do I know if a brake kit fits my vehicle?

Please contact our customer service to confirm compatibility.

To help us identify the correct kit for your vehicle, please provide the following:

Vehicle year
Make and model
Wheel size (in inches)
Whether the wheels are stock or aftermarket
Photos of your current brake setup (if possible)
VIN (Vehicle Identification Number)

The more details you share, the faster and more accurately we can assist you.

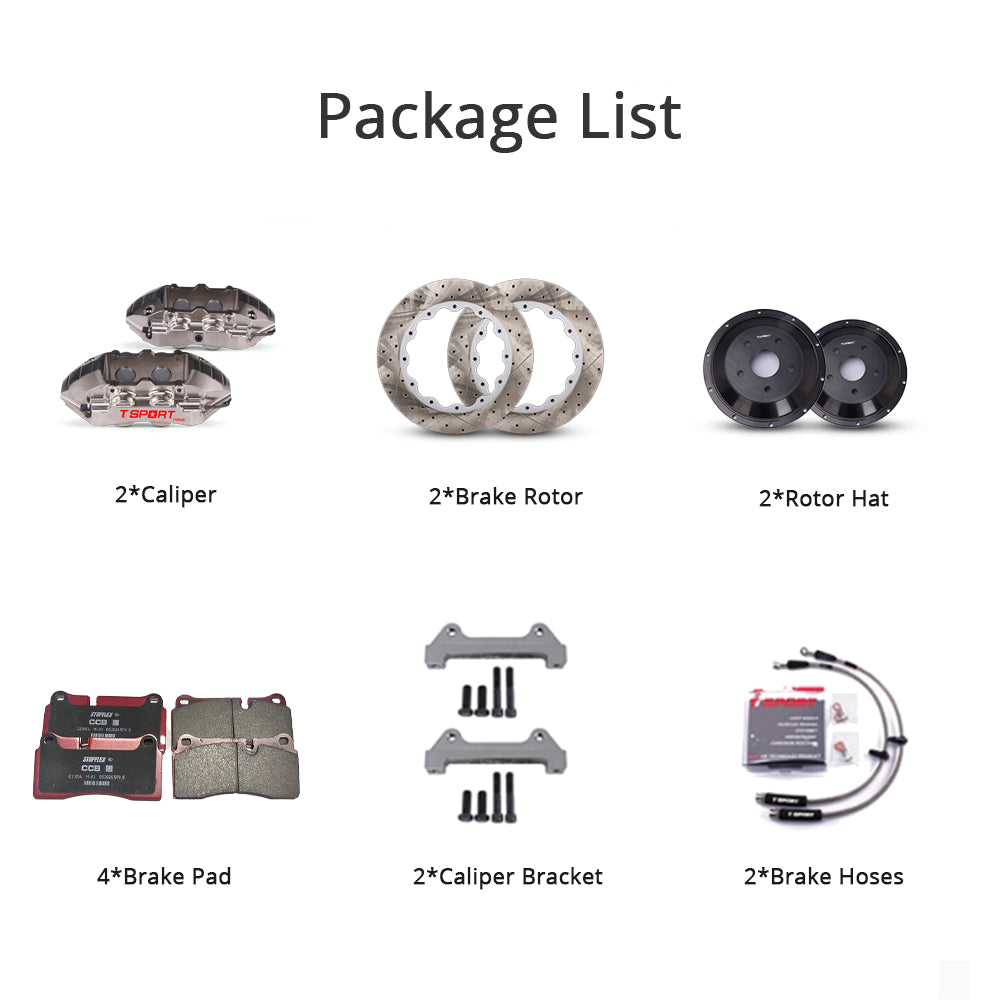

Q2: What components are included in the TTSPORT brake kit?

The standard kit includes:

2 × Brake Rotors
2 × Brake Calipers
4 × Brake Pads
2 × Rotor Hats
2 × Caliper Brackets
2 × Braided Brake Hoses

All components are engineered for outstanding performance, safety, and long-term durability.

Note: Vehicle-Specific Series brake kits do not include rotor hats or caliper brackets, as they use bridge-integrated calipers and one-piece rotors for direct OEM-style installation without additional adapters.
