xFinish the Job: Rear Big Brakes for Toyota Sequoia
This Vehicle-Specific Rear Big Brake Kit is the rear half of a complete brake upgrade for Toyota Sequoia XK60/XK80, designed to restore proper brake bias and stability when you’ve already upgraded the front.

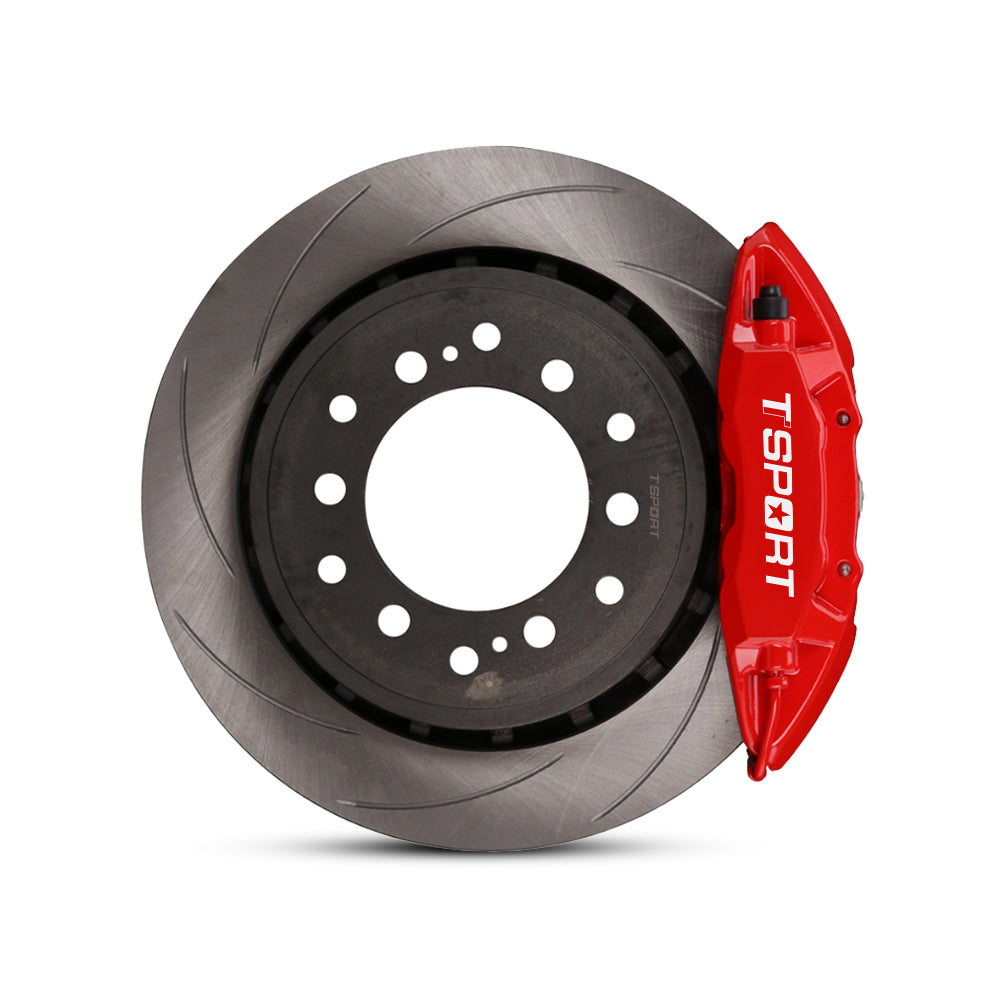

With three rows of passengers, luggage, and a trailer behind you, a front-only BBK can make the nose dive hard and the rear feel light and unsettled. This 4-piston forged caliper and 365 mm high-carbon rotor system is tuned to work with a strong front BBK, adding rear capacity so the Sequoia stays flatter, calmer, and easier to control on long highway descents and family road trips.
Technical Specifications & Kit Options for Toyota Sequoia
These specs show how the rear kit is matched to the Sequoia’s size, passenger capacity, and towing use. The piston area is selected to complement a front big brake kit and keep the rear axle working, while the large rotor helps manage heat when the SUV is fully loaded with people, luggage, and a braked trailer.
| Caliper Engineering | |
|---|---|
| Series | Vehicle-Specific Series |
| Application | Toyota Sequoia (XK60/XK80) |
| Mounting Position | Rear Axle |

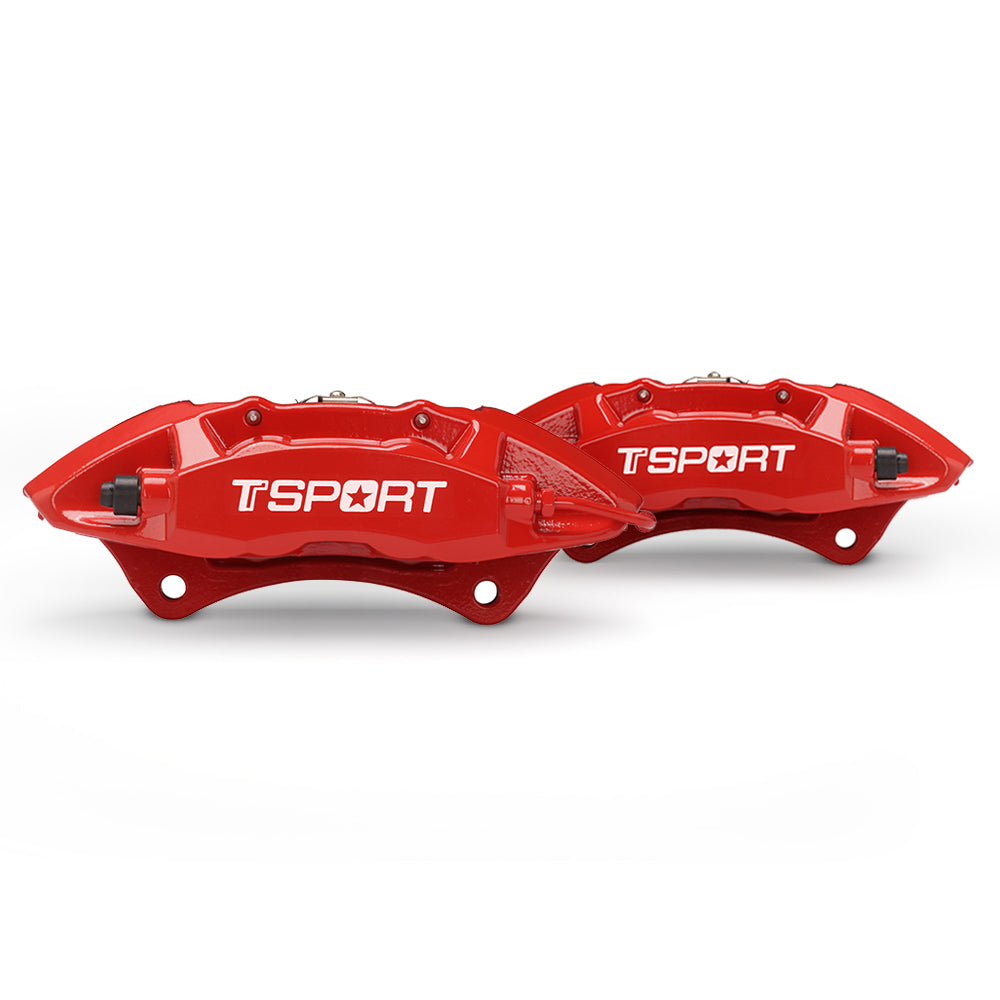

| Piston Count | 4-Piston, Staggered |
| Piston Type | 2-Piece Vented with Dust Boots |
| Piston Diameter | 30 mm / 34 mm (1.18 in / 1.34 in) |
| Total Piston Area | 32.28 cm² (5.00 in²) |
| Construction | 2-Piece Forged Aluminum Alloy |
| Net Weight | 3.20 kg (7.05 lbs) (Single Caliper, No Pads) |
| Finish | High-Temperature Gloss Coating |
| Min. Wheel Size | 17" Recommended |
| Rotor Specification | |
| Material | High-Carbon Steel |
| Dimensions | ⌀365 mm (14.37 in) × 28 mm (1.10 in) thick |
| Construction | 1-Piece Vented |
| Surface Patterns | Curved Slotted |
| Brake Pad Compound | |
| Compound Model | M-01 Street Performance |
| Operating Temp | Up to 600°C (1112°F) |
| Friction Coefficient | 0.38 μ |
| Supporting Hardware (Vehicle-Specific) | |
| Brake Hoses | 3-Layer Stainless Steel Braided (PTFE Core, SUS304 Braid, PVC Sheath), Toyota Sequoia-specific lengths and fittings |
Will It Fit? Your 3-Step Check
1. Wheel Diameter
Confirm you are running 17" or larger wheels.
2. Spoke Clearance
Measure from the rotor mounting face to the back of the wheel spokes. You need at least 100 mm (3.94 in) of clearance.
3. Vehicle Model
Please use the vehicle filter or contact us with your Sequoia’s year, engine, and trim to confirm.
Want a printable fitment template? Contact us with your vehicle's year, make, and model, and we'll email you a 1:1 wheel-clearance template.
Frequently Asked Questions
Do I really need rear big brakes on my Sequoia?
If you use your Sequoia for family trips and towing and already have a front BBK, yes. A front-only upgrade can make the SUV dive hard and feel unsettled from the rear when fully loaded. This rear kit is sized to bring the back axle up to par so the vehicle feels planted and predictable, even with all three rows filled and a trailer on the hitch.
Is this kit a direct bolt-on?
Yes. For the Sequoia XK60/XK80 models listed in the application, the calipers, rotors, and hoses mount directly to factory locations. The install is similar to a standard rear brake service—no cutting, welding, or permanent changes to the chassis.
How does this help on road trips and when towing?
On long highway descents with a full cabin and a trailer, the braking system is working hard to manage speed and heat. This rear kit adds clamping power and thermal capacity at the back of the SUV, helping reduce fade and keeping the pedal feel consistent so you can focus on the road instead of worrying about your stopping distance.

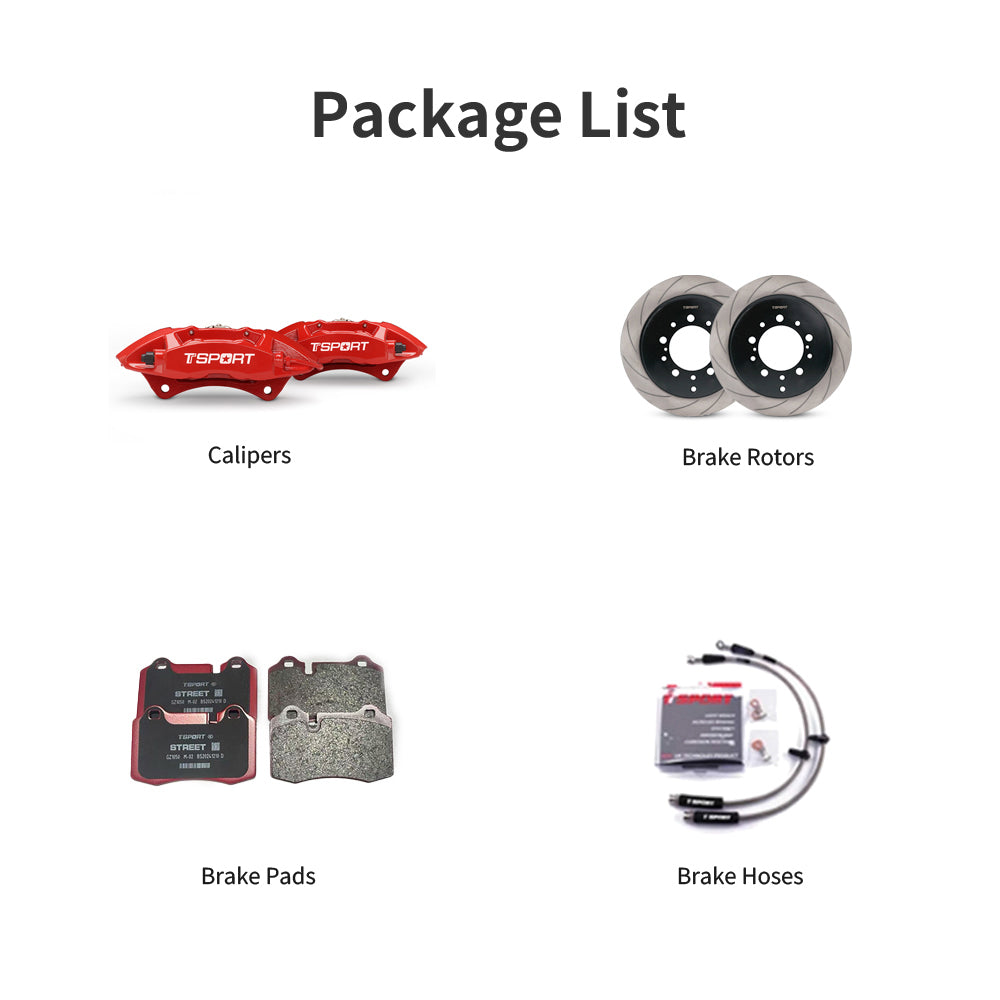

What's in the box? Is this a complete kit?
Yes, this is a complete, vehicle-specific rear big brake kit for the Toyota Sequoia. Each kit includes:
- 2x 4-Piston Forged Calipers
- 2x 1-Piece 365 mm High-Carbon Steel Rotors
- 1x Set of M-01 Street Performance Brake Pads
- 2x Stainless Steel Braided Brake Hoses (Sequoia-specific)
See This Kit In Action
See how other Sequoia owners complete their brake upgrades for towing and family road trips. Real SUVs, real results.
View Customer BuildsCare Guide
xHeads Up! What to Know Before You Install
You’re here because you’re passionate about your ride, and so are we. We want your TTSPORT brake upgrade to be a total win. Here’s some straight talk to make sure everything goes smoothly, from fitment to bedding in.
Our Return Policy
Look, we know you get it. Your brake kit is custom-made for your specific car. That means once it's built, it's yours. We can only accept returns if there’s a genuine quality defect from our side.
Sometimes, aftermarket wheels can be tricky. Depending on the design, you might need spacers for clearance. We’ll do our best to help you figure it out, but issues related to wheel spacers don't qualify for a return.
1. Let's Nail the Fitment
To get this right the first time, we need your help. Before you order, please give us the following info:
- Your vehicle's Make, Model, Year, and VIN.
- Your wheel size and specs.
We’ll likely ask you to confirm some measurements and send a few photos of your wheels. Please double-check everything you send us. TTSPORT isn't responsible for fitment issues if the specs you provided were off.
We check every single part before it leaves our shop. When your kit arrives, give it a good look-over. If you spot any potential quality issues, let us know within 24 hours.
2. The Fun Part: Bedding In Your New Brakes
This is key to awesome performance. Don't skip it.
- Find a safe, open road. Bring your car up to 40 mph (approx. 65 km/h) and apply firm, steady pressure to slow down to 10 mph (approx. 15 km/h). Don't come to a complete stop. Do this 10 times to get the pads and rotors acquainted.
- For the next 300-600 miles (approx. 500-1,000 km), take it easy. No crazy hard stops. This cures the pads and rotors and ensures a long, happy life.
- You'll notice our high-carbon steel rotors have a colored, grooved surface. This isn't just for looks—it helps speed up the bedding-in process and fights off corrosion.
3. Our Promise: The TTSPORT Warranty
We build our kits to last, and we stand by our work. Here’s the breakdown:
- Calipers: Covered for 1 year against manufacturing defects. We also offer lifetime maintenance (you just pay for parts).
- Rotors & Hoses: Covered for 90 days against manufacturing defects. These are wear items, but you can expect them to last 25,000-35,000 miles (approx. 40,000-60,000 km) depending on your driving style.
- Brake Pads: Covered for 90 days against manufacturing defects. Typically good for 15,000-25,000 miles (approx. 25,000-40,000 km).
- Custom Hats/Brackets: We guarantee they'll fit perfectly out of the box. Once they're installed, they're not covered under warranty.
4. Pro Tips for Long-Lasting Performance
- After a session of hard driving, let your brakes cool down naturally. Don't spray them with cold water—that's a fast way to warp rotors.
- Brakes feel different in the rain. Give yourself some extra stopping distance.
- If you hear or feel anything weird—grinding, shaking, etc.—talk to your installer right away.
Recommended Service Intervals:
- Rotors: Replace them when wear exceeds 3 mm (approx. 0.12 inches).
- Front Pads: Plan on swapping them every 20,000 miles (approx. 32,000 km) or so.
- Rear Pads: Usually last longer, around 35,000 miles (approx. 56,000 km).
- Brake Fluid: Flush and replace every 25,000 miles (approx. 40,000 km) or every 2 years, whichever comes first.
