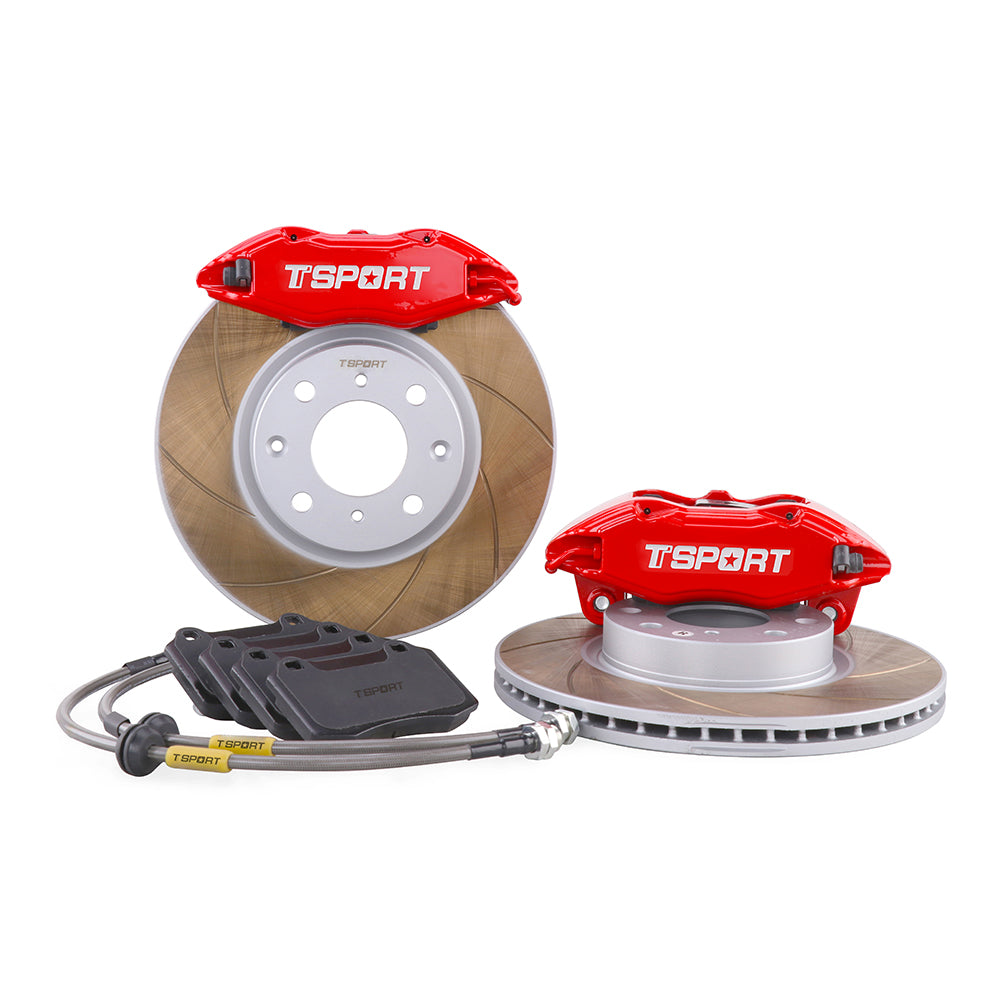

Complete TTSPORT Honda Fit/Jazz front wheel big brake kit, showing the 4-piston forged calipers, slotted rotor, performance pads, and steel-braided brake lines.

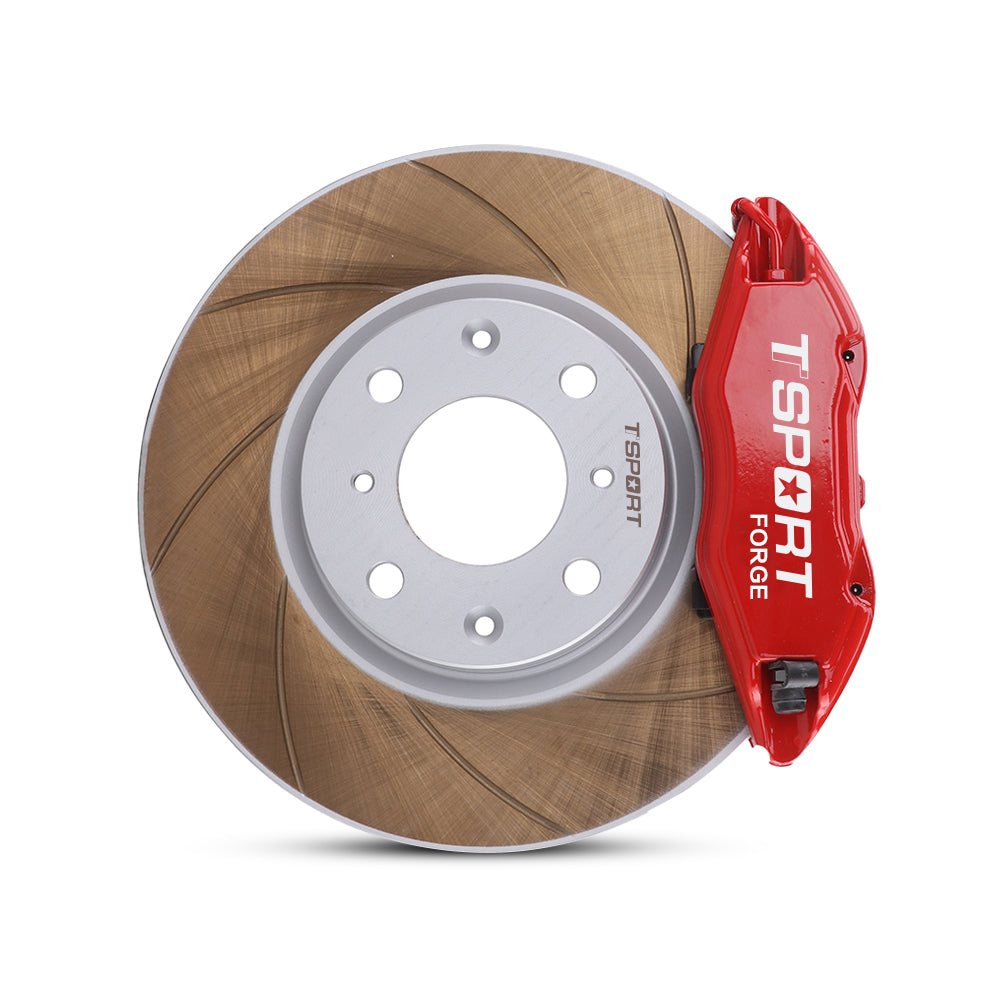

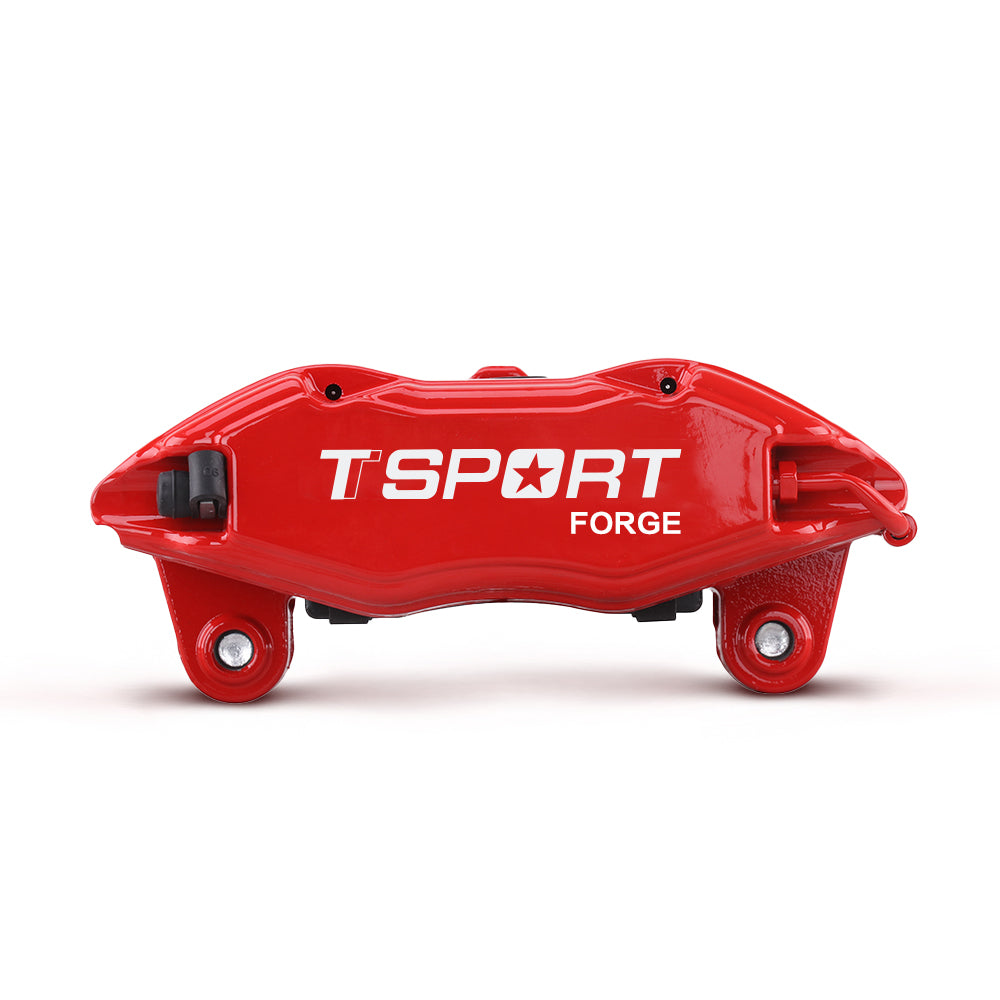

Close-up of a red TTSPORT Honda Fit/Jazz 4-piston forged brake caliper for the front wheel and a slotted rotor.
Detailed view of the 4 pistons with dust boot inside a TTSPORT Honda Fit/Jazz front wheel forged brake caliper.

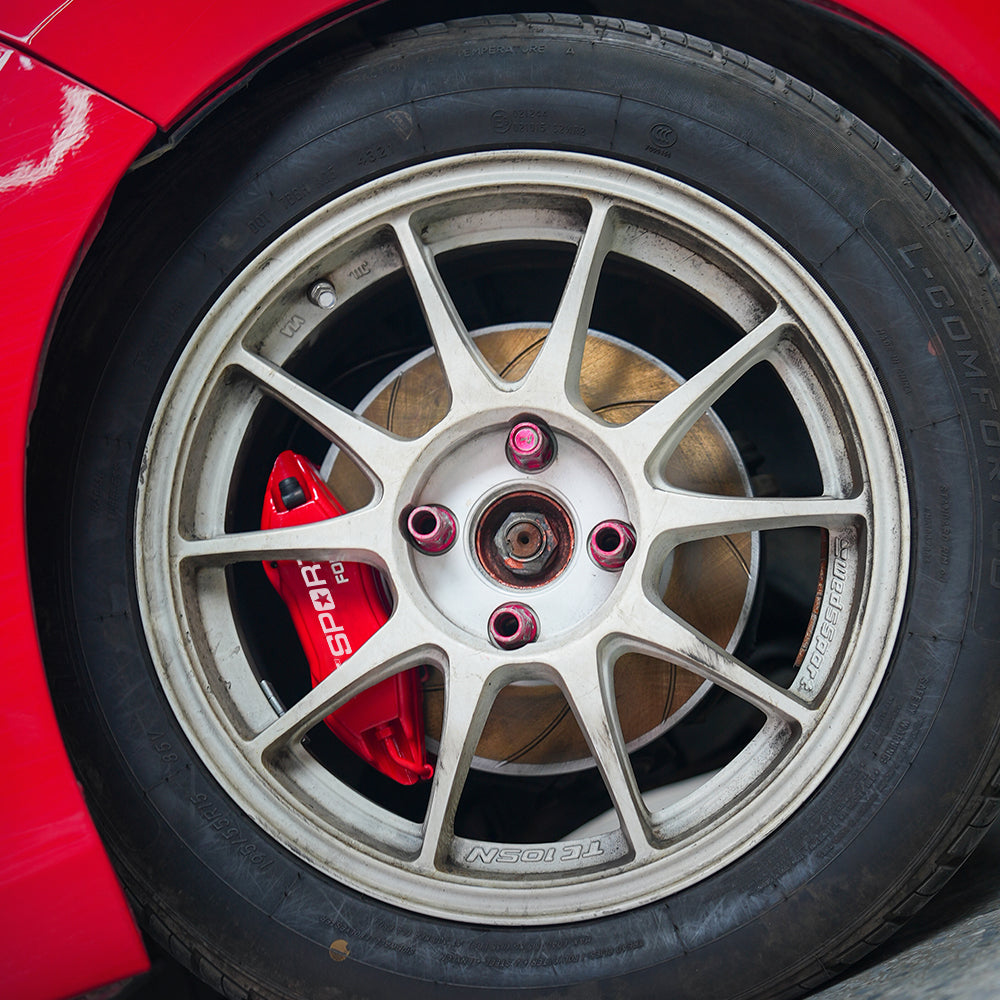

A red TTSPORT 4-piston big brake kit is installed on the Honda Fit/Jazz front wheel.

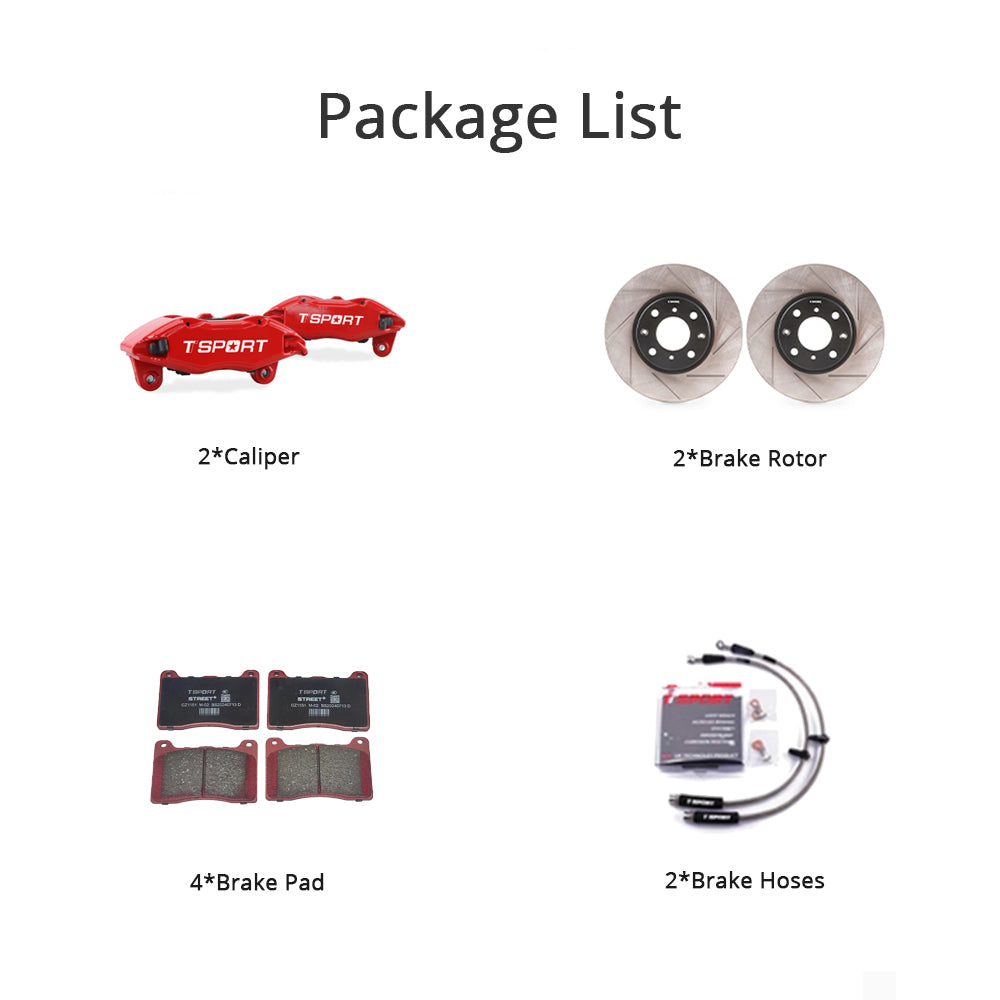

Unboxing the complete TTSPORT Honda Fit/Jazz front wheel performance big brake kit, including all components: calipers, rotors, pads, and brake lines.

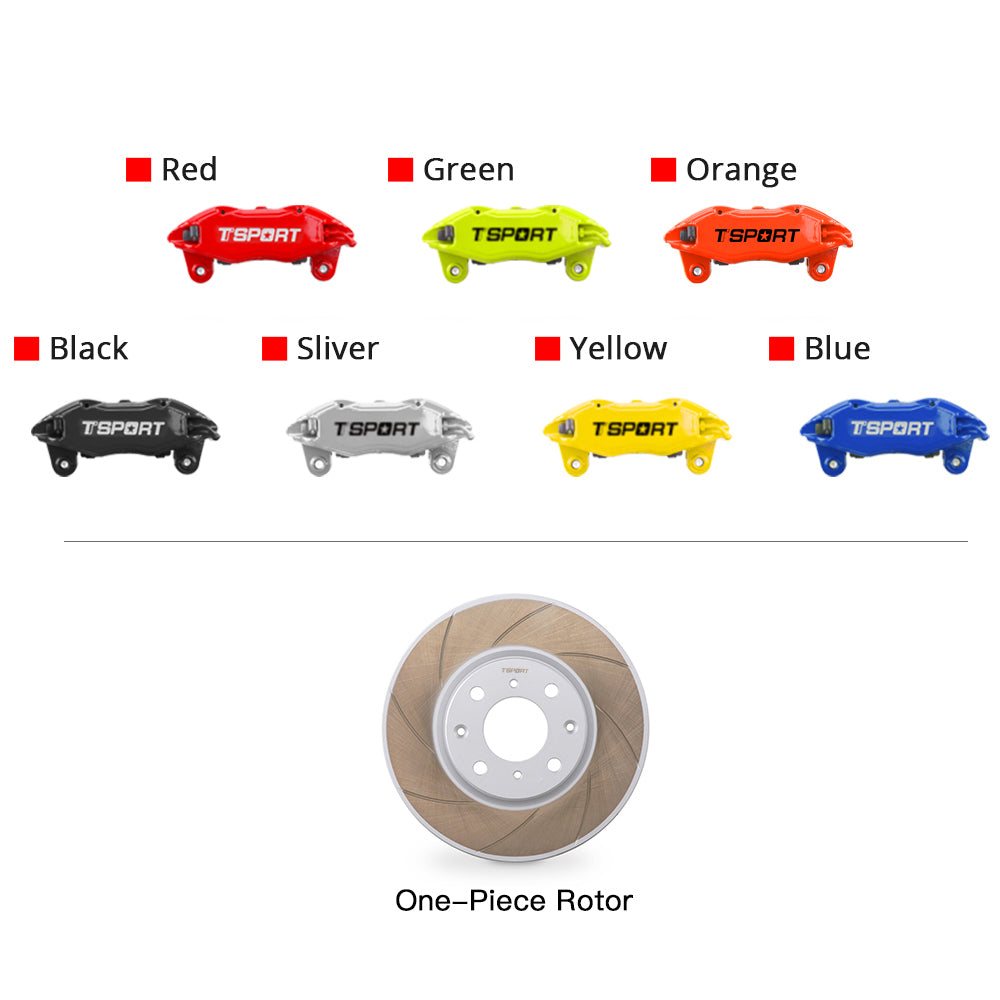

Customization options for the TTSPORT Honda Fit/Jazz front wheel brake kit, featuring available caliper colors (red, blue, green, orange), rotor designs (slotted).
Complete TTSPORT Honda Fit/Jazz front wheel big brake kit, showing the 4-piston forged calipers, slotted rotor, performance pads, and steel-braided brake lines.
Close-up of a red TTSPORT Honda Fit/Jazz 4-piston forged brake caliper for the front wheel and a slotted rotor.
Detailed view of the 4 pistons with dust boot inside a TTSPORT Honda Fit/Jazz front wheel forged brake caliper.
A red TTSPORT 4-piston big brake kit is installed on the Honda Fit/Jazz front wheel.
Unboxing the complete TTSPORT Honda Fit/Jazz front wheel performance big brake kit, including all components: calipers, rotors, pads, and brake lines.
Customization options for the TTSPORT Honda Fit/Jazz front wheel brake kit, featuring available caliper colors (red, blue, green, orange), rotor designs (slotted).

Vehicle-Specific Series Honda Fit / Jazz Front Wheel 4-Pistons Brake Kit

$640.00 USD
$640.00 USD

Shipping costs not included

Caliper Color: Standard Color (As Shown in the Image)
Rotor Size: 262x21mm (Wheel ≥ 15″)
Rotor Material & Design: Steel - Curved Slotted
Complete TTSPORT Honda Fit/Jazz front wheel big brake kit, showing the 4-piston forged calipers, slotted rotor, performance pads, and steel-braided brake lines.

Vehicle-Specific Series Honda Fit / Jazz Front Wheel 4-Pistons Brake Kit

$640.00
Complete TTSPORT Honda Fit/Jazz front wheel big brake kit, showing the 4-piston forged calipers, slotted rotor, performance pads, and steel-braided brake lines.
Close-up of a red TTSPORT Honda Fit/Jazz 4-piston forged brake caliper for the front wheel and a slotted rotor.
Detailed view of the 4 pistons with dust boot inside a TTSPORT Honda Fit/Jazz front wheel forged brake caliper.
A red TTSPORT 4-piston big brake kit is installed on the Honda Fit/Jazz front wheel.
Unboxing the complete TTSPORT Honda Fit/Jazz front wheel performance big brake kit, including all components: calipers, rotors, pads, and brake lines.
Customization options for the TTSPORT Honda Fit/Jazz front wheel brake kit, featuring available caliper colors (red, blue, green, orange), rotor designs (slotted).

Vehicle-Specific Series Honda Fit / Jazz Front Wheel 4-Pistons Brake Kit

$640.00
Caliper Color: Standard Color (As Shown in the Image)
Rotor Size: 262x21mm (Wheel ≥ 15″)
Rotor Material & Design: Steel - Curved Slotted
Specifications

Bolt-On Big Brakes for Honda Fit / Jazz (Fits Stock 15" Wheels)

Transform your Honda Fit into a corner-carving machine. This direct-fit big brake kit is the ultimate performance upgrade for the Fit/Jazz platform, engineered to replace your weak factory brakes with a powerful 4-piston forged caliper and a larger 262mm performance rotor.

Forget brake fade and that spongy pedal. This kit delivers a massive improvement in stopping power and heat dissipation, giving you the confidence to brake later and push your car harder on back roads or at the autocross. Best of all, it’s a true bolt-on system designed to fit perfectly behind your factory 15" or larger wheels for a hassle-free installation.

Technical Specifications

Caliper
Series Vehicle-Specific Series
Model WD4 – Honda Fit / Jazz
Mounting Position Front
Number of Pistons 4
Piston Type Aluminum Alloy Pistons without Dust Boots
Piston Diameter 38 mm × 4
Dimensions L 205 × W 110 × H 89 mm
Total Piston Area 45.36 cm²
Manufacturing Process Two-Piece Forged
Net Weight 1.80 kg (single caliper without pad)
Surface Finish High-Temperature Gloss Coating
Recommended Wheel Size 15″ or larger
Brake Rotor
Material Heat-Treated High Carbon Steel
Dimensions ⌀262 mm × 21 mm
Construction 1-Piece Rotor
Vented / Solid Vented
Floating / Fixed Fixed
Directional Yes
Design Options Curved Slotted / GrainSlot
Brake Pad
Compatible Rotor Material Steel Rotors
Operating Temperature 0–550°C
Coefficient of Friction 0.40–0.46 μ
Brake Hose
Construction 3-Layer Reinforced
Material Inner: PTFE (Teflon); Middle: SUS304 Braided Stainless Steel; Outer: PVC Sheath

3-Step Pre-Fitment Check

Step 1: Illustration showing this Honda Fit brake kit requires 15-inch or larger wheels.
Step 1: Verify Wheel Size (15" Minimum)
Step 2: Diagram showing how to measure caliper to wheel spoke clearance, minimum 67mm required.
Step 2: Check Spoke Clearance (Min. 67 mm)
Step 3: Icon representing checking your vehicle's compatibility from a verified list.
Step 3: Confirm Your Vehicle Model

Vehicle Compatibility

Brand Model (Platform Code) Model Year
Honda Fit / Jazz (GE, GG) 2009–2014
Honda Fit / Jazz (GK, GH, GP) 2015–2020
Honda Fit / Jazz (GR, GS) 2021–Present

Frequently Asked Questions

Is this kit hard to install?
No. This kit is engineered for a true bolt-on installation. The caliper and one-piece rotor are designed to directly replace the factory components with no modifications required.
Will this fit my stock 15" wheels?
Yes, this big brake kit is specifically engineered to provide full clearance for the factory 15-inch and larger wheels on the Honda Fit/Jazz models listed.
Why upgrade the brakes on a small car like the Fit?
A multi-piston forged caliper provides a huge improvement in performance. You'll get more stopping power, better heat resistance to eliminate brake fade during spirited driving, and a much firmer, more confident pedal feel than the mushy, single-piston stock calipers.
Notice

Brake Kit Purchase Notice


  • Custom‑made products cannot be returned unless there is a genuine quality defect.
  • Spacer requirements vary depending on wheel design; we assist with fitment, but spacer‑related issues do not qualify for returns.

1. Disclaimer

  1. Please provide vehicle make, model year, VIN, and wheel size before ordering TTSPORT products.
  2. Confirm wheel measurements and submit photos as requested — TTSPORT is not liable for issues arising from incorrect specs.
  3. All products are inspected before shipping. Inspect upon delivery and report quality issues within 24 hours.

2. Initial Break‑In Procedure

  1. In a safe area, brake from 60 km/h to 10 km/h with moderate pressure—repeat 10 times.
  2. Drive 500–1,000 km with light to moderate usage before full braking performance. Avoid aggressive stops.
  3. Our high‑carbon steel discs have grooved, color‑treated surfaces to help quick bedding and resist corrosion.

3. Product Warranty

  • Calipers: 1‑year warranty on defects. Lifetime maintenance available (parts charged).
  • Discs & Hoses: 90‑day warranty for defects. Expected lifespan: 40,000–60,000 km.
  • Brake Pads: 90‑day coverage. Typical lifespan: 20,000–40,000 km.
  • Custom Hats/Brackets: Fit guaranteed; no warranty post-installation.

4. Usage & Maintenance

  1. Do not wash immediately after hard braking to prevent rotor warpage.
  2. Allow extra stopping distance when driving in wet conditions.
  3. If you experience unusual noise or vibration, consult your installer immediately.

Recommended service intervals:

  • Replace rotors when wear exceeds 3 mm.
  • Front pads: every 30,000 km.
  • Rear pads: every 50,000–60,000 km.
  • Brake fluid: every 40,000 km or every 2 years.
